Beschreibung
Application
– For Mitsubishi 4G63T evo9 / EVO IX / EVO 4 ~ 9
– Horsepower Range: 500~650HP
CHRA Size
– TD06HR-25G
Wheels Spec
– Compressor wheel: 60.5 / 78 mm (Billet 6+6 blades for low-end torque and Billet 11+0 blades for top-end speed)
– Turbine wheel: 58.8 / 67.8 mm
Compressor Housing

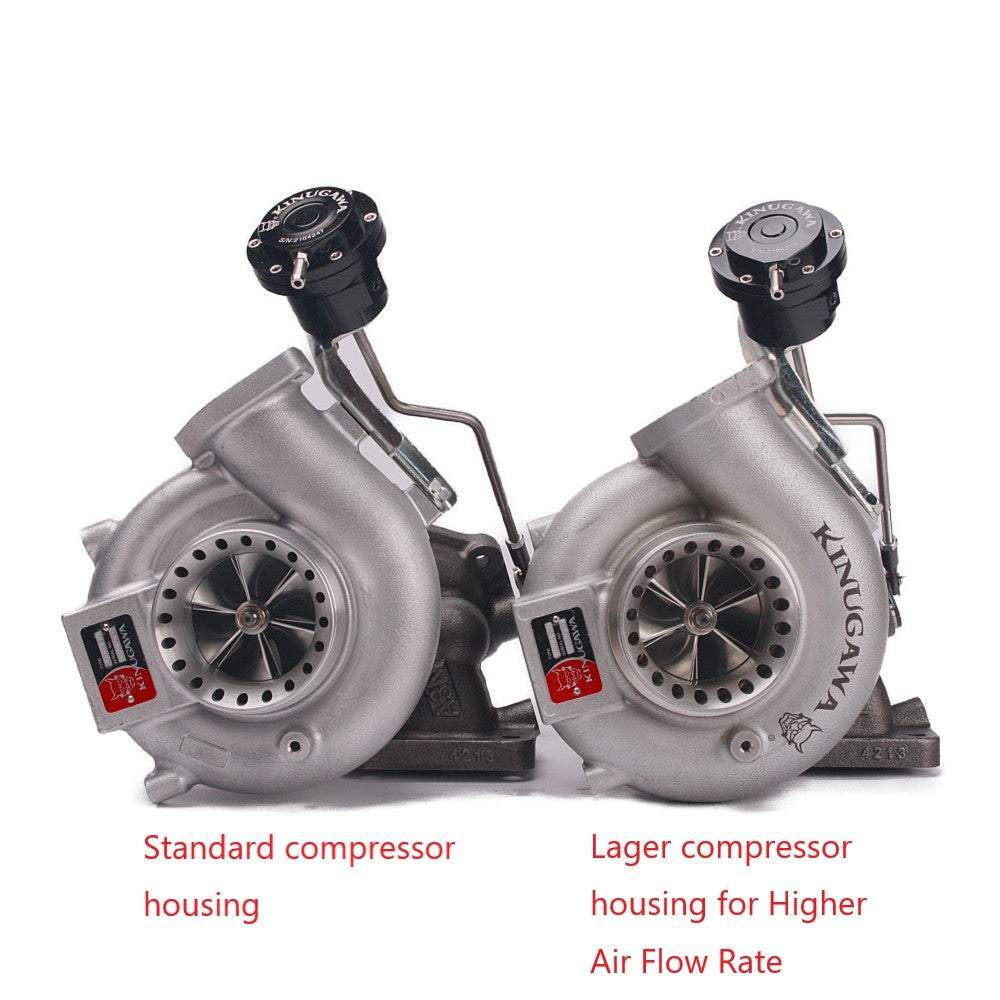

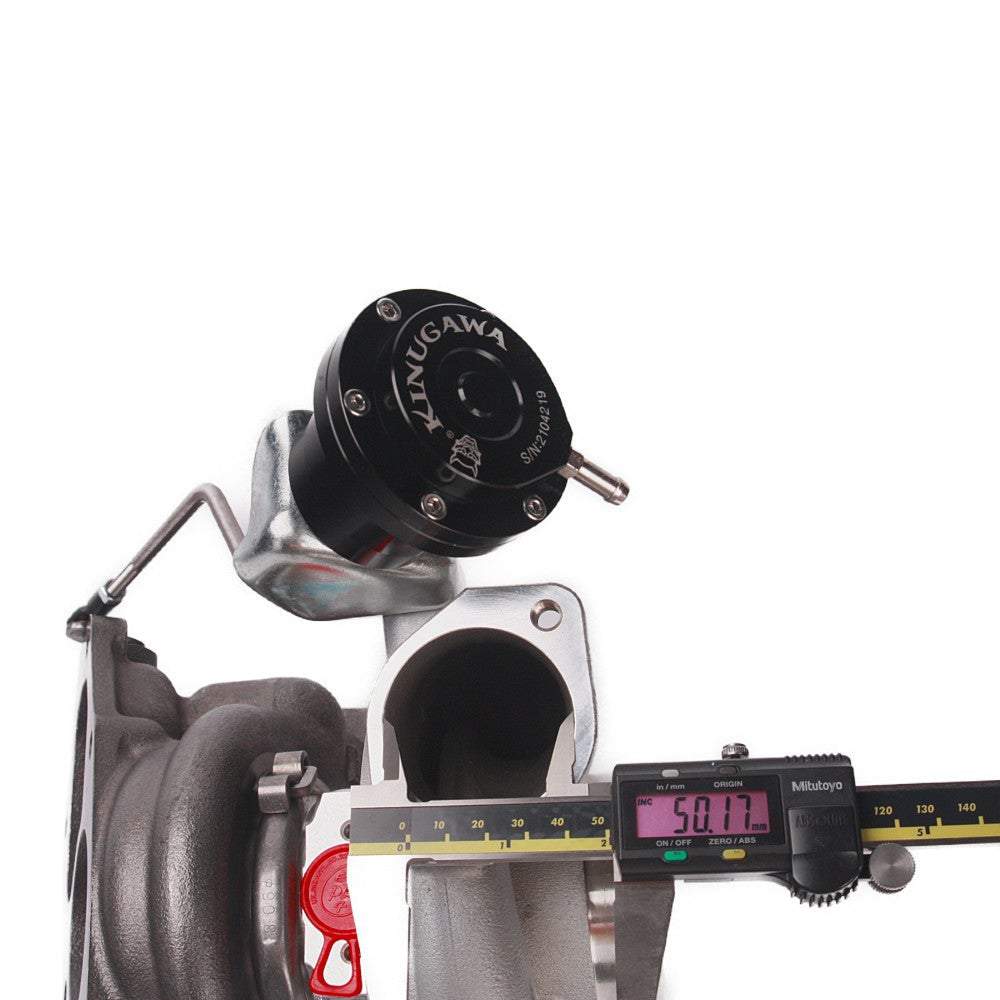

– Larger type with 5.00 mm 2-bolts outlet (standard 4.00mm) for higher airflow rate.
Turbines Housing
– A/R 10.5 cm ^ 2 Twin-Scroll
Bearing Type
– Journal Bearing with 360 performance thrust bearing
Cooling systems
– Oil and water cooling
Actuator Pressure
– 1.0 bar / 17.6 psi default .
– 0.5bar, 0.8 bar, 1 bar, 1.2 bar, 1.5 bar, available 1.7 bar and 2.0 bar, Please add a comment about your order if you need to change it.
Situation
Brand New
Provider
Kinugawa Turbo Systems
Guarantee
One year
