Application

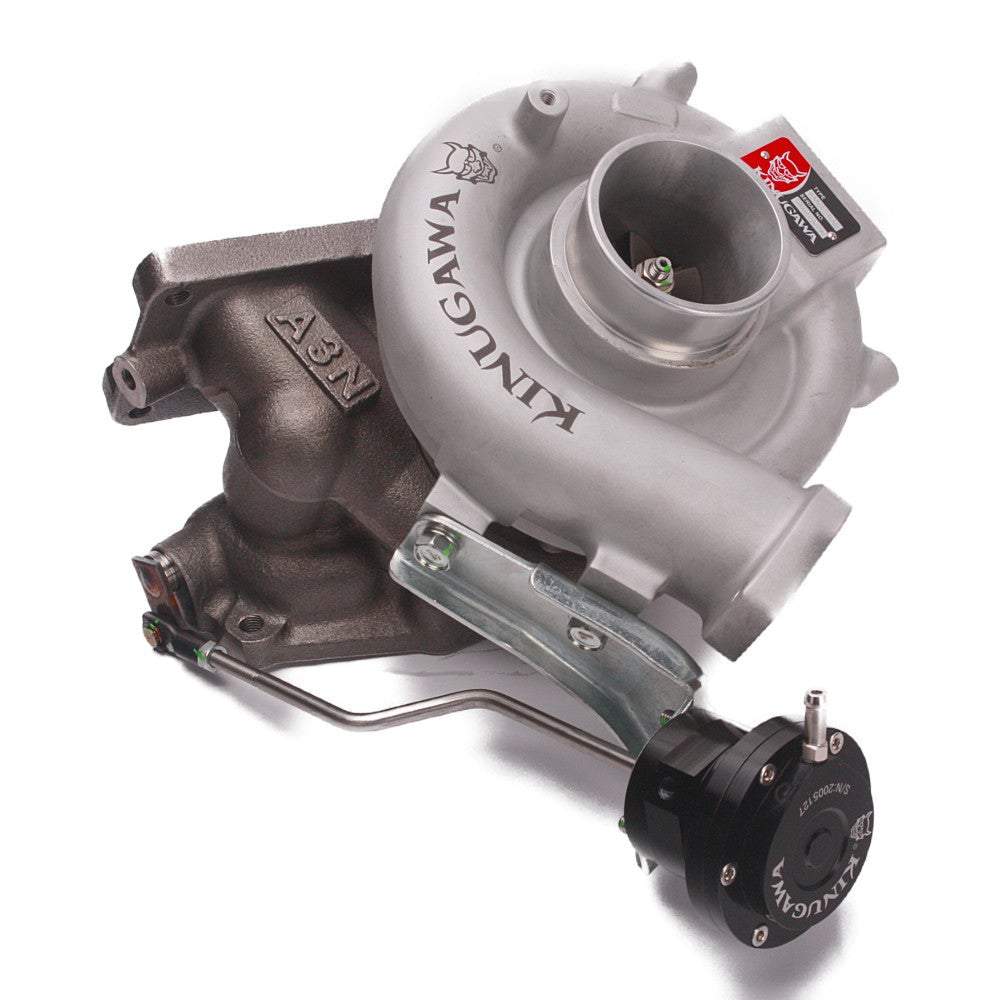

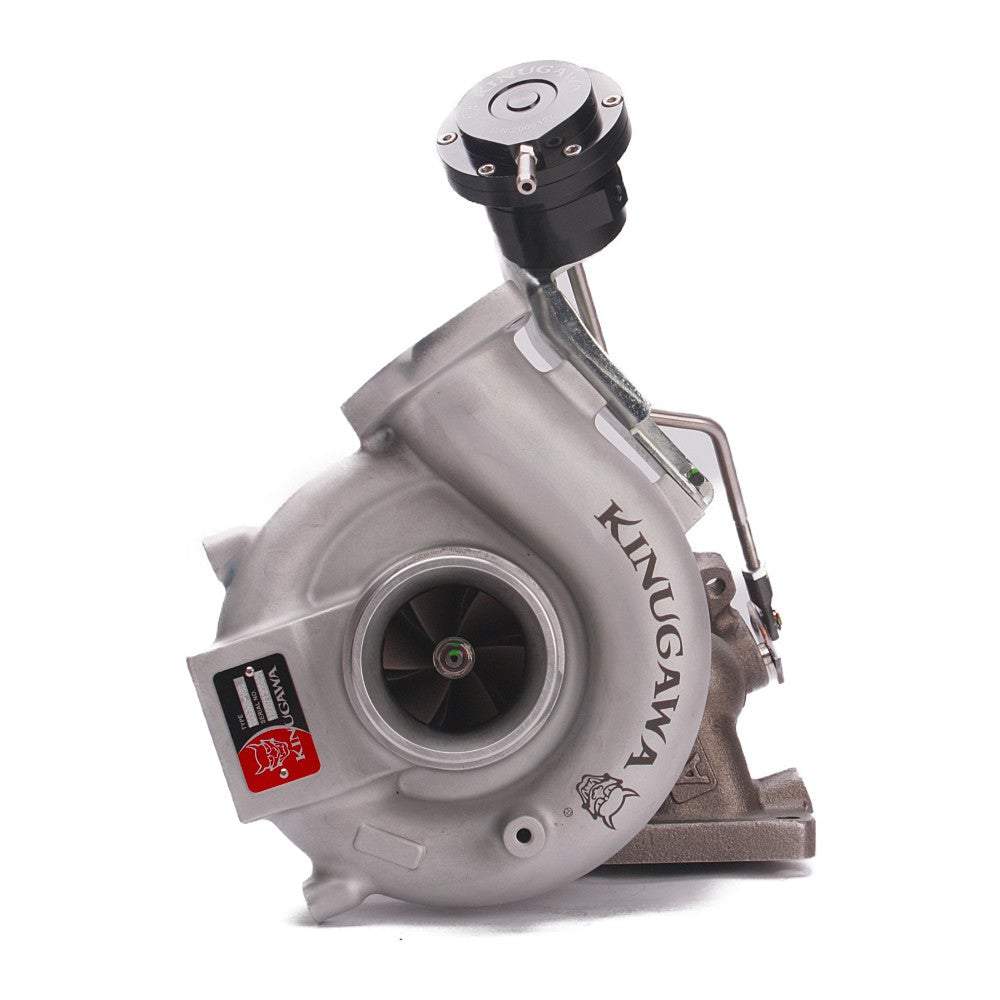

– For Mitsubishi 4G63T EVO 9 / EVO IX / EVO 4 ~ 9 for 550HP

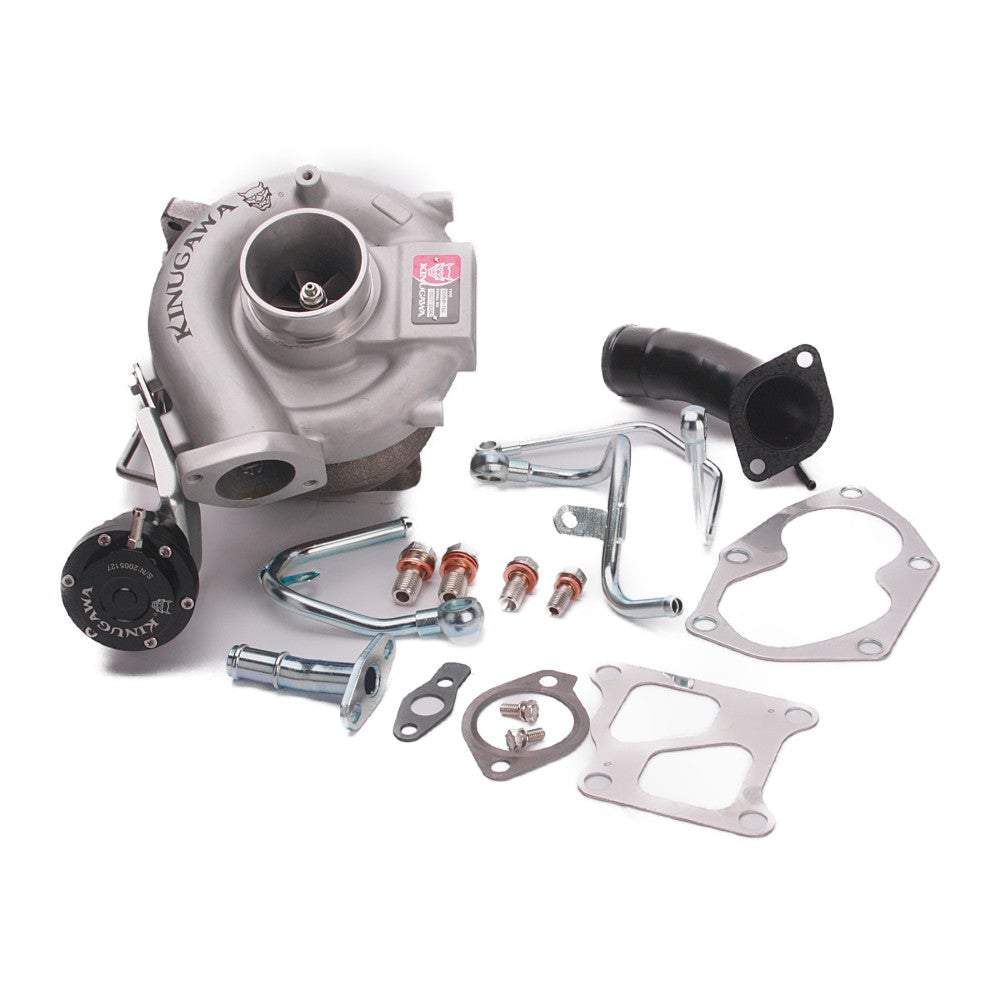

– EVO 4-8 Install Kit included.
CHRA Size

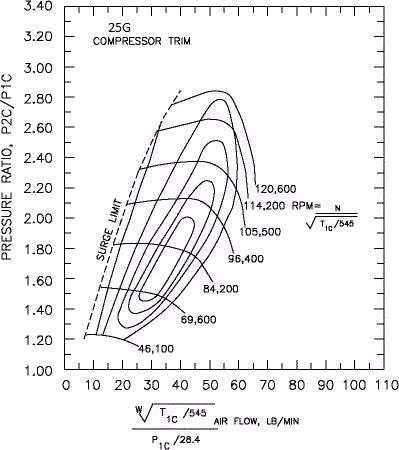

Reverse TD06HR-25G Wheel
Wheels Spec

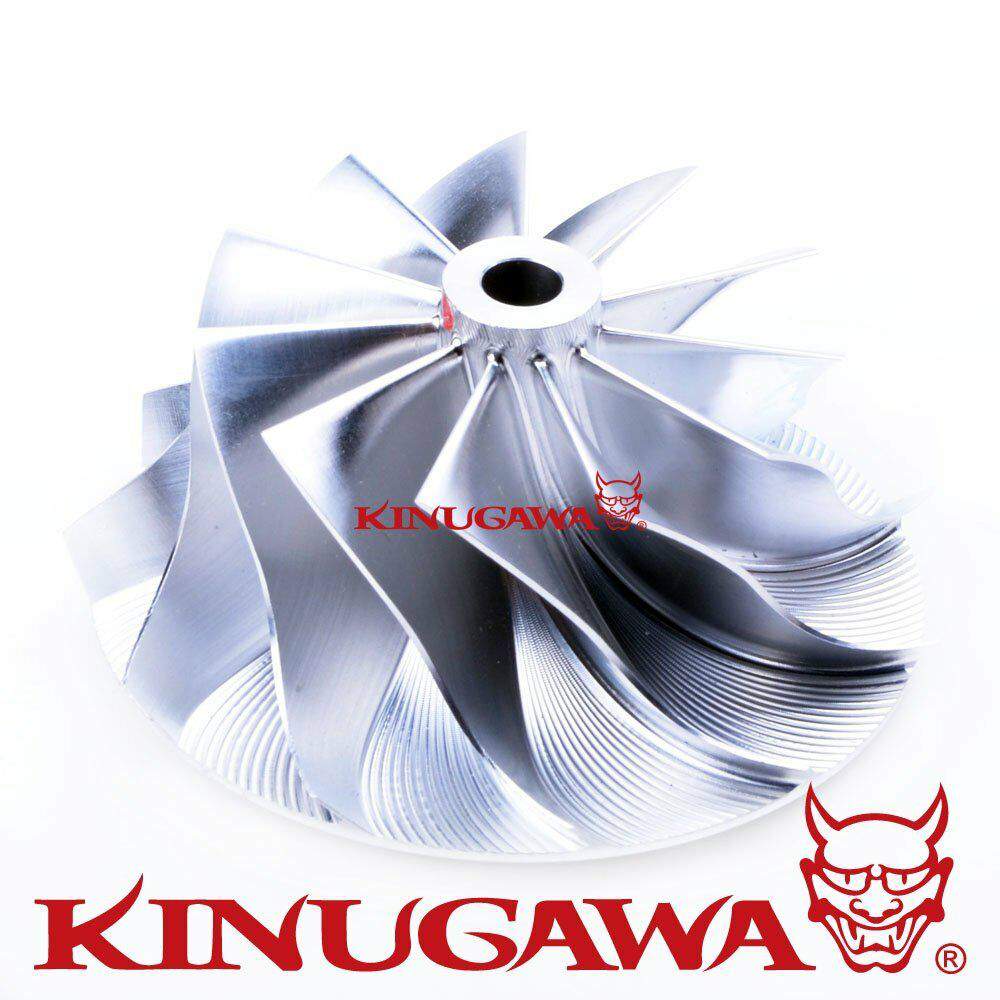

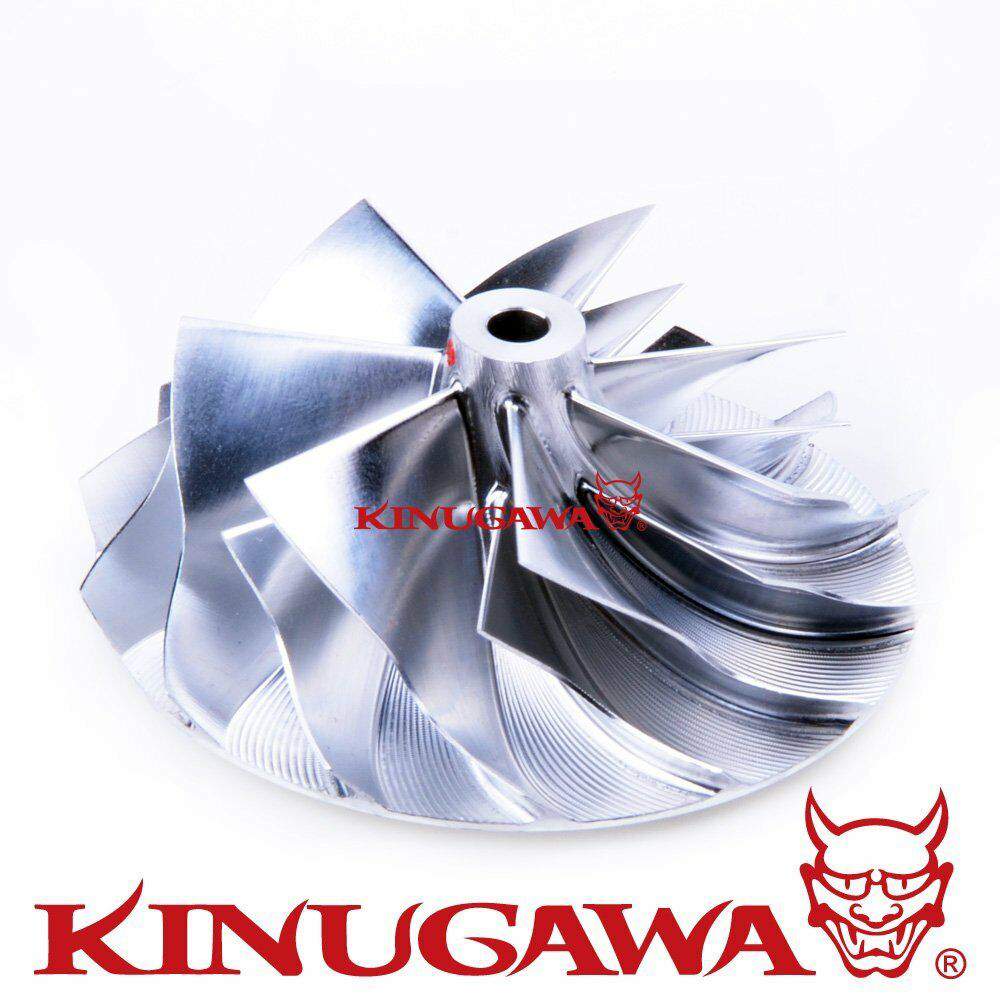

– Compressor wheel: 60.5 / 78 mm (In./Ex. Diameter) extension Tip: 73.05 mm

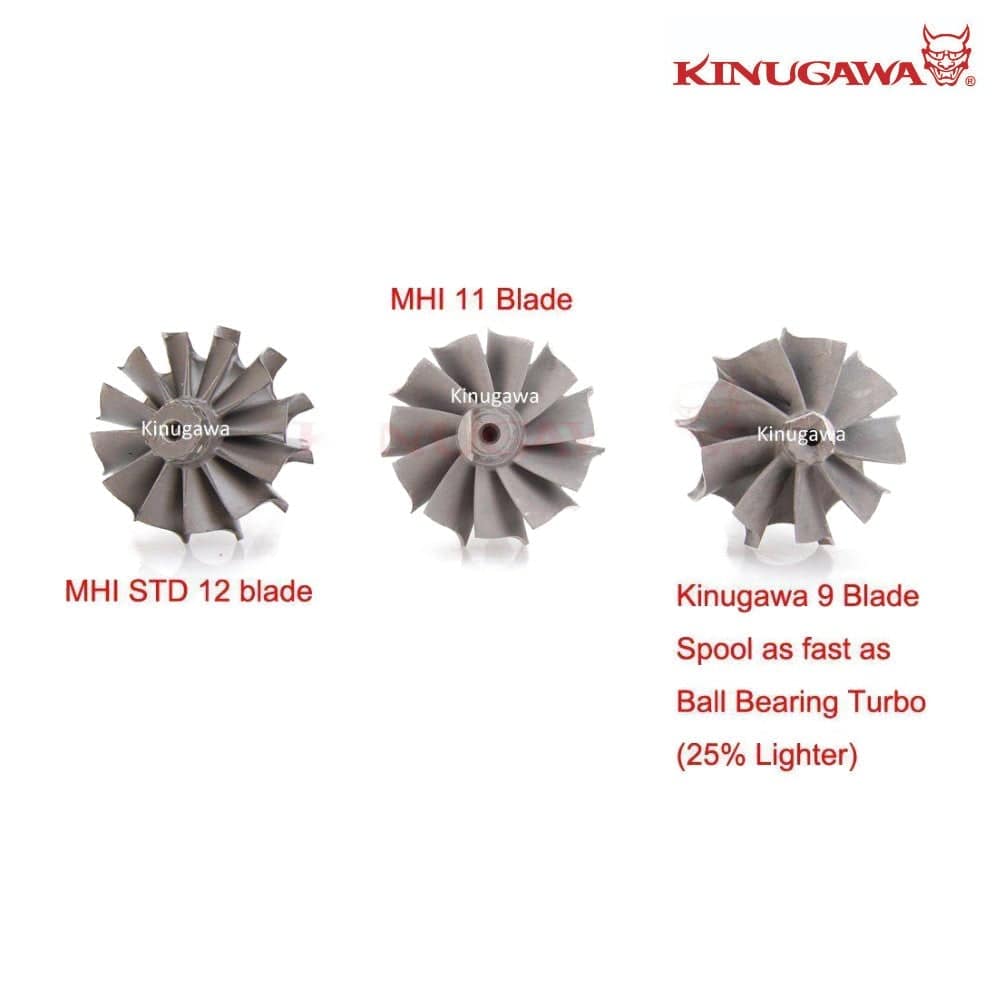

– Turbine wheel: 58.8 / 67.2 mm (Ex./In. Diameter)
Compressor Housing
2.5″ inlet / stock 2 bolts flange outlet

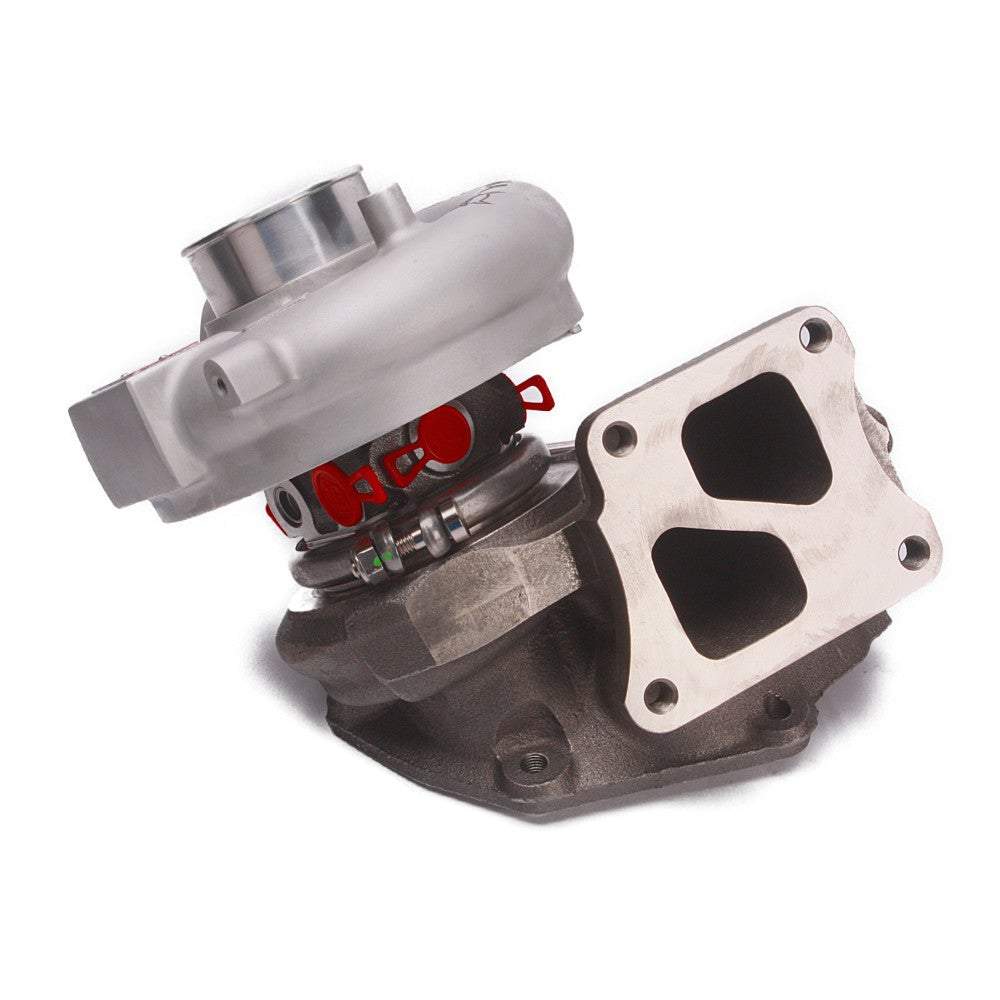

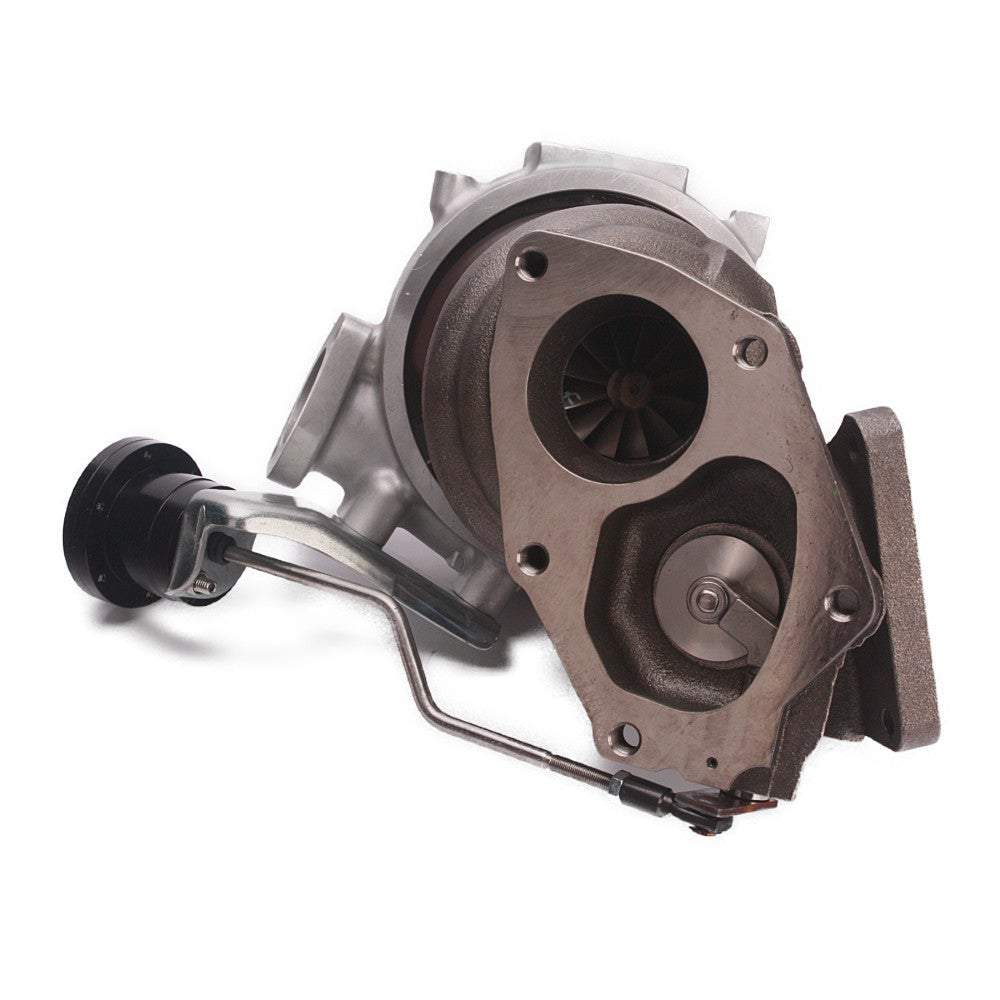

Turbines Housing
10.5 cm ^ 2 Twin-Scroll
Bearing Type
– Journal Bearing with 360 performance thrust bearing
Cooling systems
Oil and water cooling
Drive Pressure
-1.0 bar / 17.6 psi default .
-0.5bar, 0.8 bar, 1 bar, 1.2 bar, 1.5 bar, available 1.7 bar and 2.0 bar, Please add a comment about your order if you need to change it.
Situation code
Brand New
Provider
Kinugawa Turbo Systems
Guarantee
One year
